Tuesday, August 7, 2018

Standing Frames: The Broader Discussion

The discussions I typically have surrounding standing frames (or "verticalization" in general) typically begin with a formally simplistic question:

"Are standing frames good or bad?"

As those who know me well would expect, my response would be far from a generic "yes / no".  There is ALWAYS a contextual consideration to be made...at the very least.

WHAT standing frame will be used?
WHO is the standing frame intended for?
WHAT angle is the intended frame to be set?
HOW long do you plan on implementing it?
WHAT is the frequency per week / month?
WHAT is the status of the hips / legs?

..the list goes on.

In an effort to "open the brackets" and engage in the broader exploration, I think it is best to start with the most intuitive (and the most widely understood) rationale for their use.  This rationale (in my experience) has been justified as follows:

"Vertical loads are good for the hips."

This statement is most certainly accurate in the developmental sense...however, in order for it to be given the blanket statement of being "TRUE", you need to add a modifier that makes it so.  Therefore, the "truer" statement would be:

"Under healthy biomechanical situations, vertical loads are good for the hips."

This revised (and comparatively more complete) statement is unequivocally true...however, we all understand that disorders of movement and posture have varied and diverse unhealthy biomechanical manifestations.  The discussions always generally come back to the original question..

"So they are bad then?"


I think the best way to approach the process of a broader understanding is to be a bit better (as professionals) in being explicit and defining our statements with much more precision.  In other words, I would suggest that the statement actually be changed:

"Vertical AXIAL loads are good for the hips."

Let me unpack what may seem to be a nuance:

Under healthy biomechanical circumstances, you can be sure that the ground force reaction (the mechanical forces entering from the feet) will travel through the foot and ankle, traverse the knee, and ultimately end up in the hip.  It is this repetitive "micro-stimulus" that is derived from crawling / walking that drives the evolution of the acetabulum (socket) and the overall development of the hip.

However, in a situation such as CP, the presence of multiple layers / levels of joint weakness, muscular imbalance, proprioceptive deficits, bony deformation, etc...makes it formally impossible to be completely sure that these ground force reactions are INDEED reaching the hip and not (perhaps) exiting the ankle or knee...or worse, de-stabilizing the joints more.  The only way to ensure that the mechanical loads enter the hip is to (through specific and focused methods) generate a stimulus that you are sure travels along the axis of the bone.

"So now you're saying they are REALLY bad?"


(Finally) Here is how I would respond to the specific question of standing frames.

In truth, the question is not about whether standing frames themselves are "good or bad"...they are inanimate objects that cannot generate any benefit or damage until they are "attached" to a biological system.  Therefore, the more appropriate question is:

"Are they good or bad for my child?"

To answer that question in the most comprehensive way, we have to get an even MORE broader perspective on CP rehab strategies in general.  To be precise, EVERYTHING you do as a parent / professional / caregiver has to service one or all of the social, cognitive, physical needs of the person.

1. Does a standing frame service any social need?  YES.  The mere fact of being vertical...or at "eye level" with family, siblings, peers...presents and ENORMOUS benefit to anyone's social interaction and development

2. Does a standing frame service any cognitive need? YES.  Being in the supported, semi-loaded position may facilitate better overall comfort and, as a result, allow for more mental resources to be freed up for cognitive tasks (school, arts, etc...)

3. Does a standing frame service any physical need? YES*.  I purposely inserted the asterisk * here to highlight / remind us that it is the physical needs that the standing frame is most intuitively identified as being the "valuable" tool...but it requires some additional layers of analysis and thought.

It can be a reliable physical tool when:

a) The distortion in the feet / ankle / knees are minimal to moderate
b) There is no presence of extreme muscular tension
c) The pelvis is somewhat adequately prepared for some minimal amounts of load bearing
d) Proper consideration is given to the angle (greater the angle, the greater the mechanical loads)
e) The time spent in the frame does not exceed their tolerance level nor does it generate any muscular fatigue
f) Any empty spaces behind / between the knees and behind the hips and lower back can be filled.  This potentiates a more neutral stance and thus, less excessive muscular activation / tension.

Therefore, are they good or bad?  They are neither.  The important element in the equation is the person to be placed in the standing frame.  I would summarize in the following way:

"You need not be fearful of standing frames nor should you be too accepting of them. They can be "friend or foe"...therefore, as with anything as infinitely complex as the body, you need to implement a focused analysis on whether it is appropriate for YOU."

This is obviously a very "compact" narrative that can be expanded into the specific "axial loading techniques", the physiological response of bone, and the varied and diverse options for standing frame use...but I hope that this initial discussion does indeed "open some brackets" and stimulate some productive analysis and thought!

Monday, August 7, 2017

Broader strategies for rehabilitation in Cerebral Palsy


Despite the seemingly intuitive nature of formulating a rehabilitation strategy, I have found that many people (care-givers and care-seekers alike) get easily distracted or otherwise side-tracked by the "shiny object" nature of our current society.  As with almost everything, we look for ways that seem to obliterate space and time...finding ways to "get it now and get it quickly".

Within the context of CP...and in fact, within the context of biological reality...tissues, systems, and physiological behavior cannot be altered to fit any intended framework.  Therefore we are bound to (surprise, surprise) the biophysical limits of our universe.  Given this inherent thought process, I have found that one of the most common and pervasive questions presented to me falls within the framework of "what is the best therapy for CP?"  Most people, after putting this question to me, come away partially disappointed...mainly because my response is usually prefaced by the comment that the question itself is far too simplistic.  My response is (paradoxically) equally simplistic however:

"It's not a question of WHAT is the best therapy, but WHEN is the best therapy."

To put it simply, the human organism is constantly in flux and experiences remodeling and "renovation" at all times.  More importantly, the child with CP is growing and changing exponentially quicker.  Length, mass, fluid flow, pressure gradients...EVERYTHING is changing on a daily basis.  Therefore we come across a fundamental question / challenge / dilemma:  How can one framework or strategy properly / adequately compensate for these rapid and (sometimes unpredictable) transformations?  The answer is that none of them can.  However...there ARE enough varied frameworks currently out there that fundamentally serve specific roles at different points in the developmental process.  The more primitive focus (IMHO) is to identify the specific priorities at that specific point in the developmental process and only then determine which strategy best serves these priorities.

Certainly a complex chore...but, this is where the "professional" comes in.  Rather than promote any one strategy or idea, beginning to frame the larger "big picture" and building a clearer understanding (over time) of the "path" will help to understand the varied "vehicles" through which the journey will take place.

Again, CP is multilayered and there are levels of complexity that are formally impossible to fully understand and, by extension, influence.  However, there are certain parameters that both follow the normal developmental sequence AND present very viable "blueprints" for building a long term rehabilitation strategy.  Although the potential combination and permutations are enormous, they ultimately follow this process:

1. Structural Transformation / Change
2. Muscular Strengthening / Priming
3. Movement Stimulation

This in not an open-ended sequence, rather one that is cyclical and one that potentiates itself through each new cycle.

Understanding this cyclical nature of development, it becomes formally "easier" to identify the most efficient and relevant therapy(ies) / strategy(ies) to implement.

Long term success requires a diversity in approaches as well as the broader understanding to navigate the TRANSITIONS.  The blog has been silent this year...but not for any reason other than it has been a year or growth and exploration...so I am hoping to be able to share the fruits here soon!


Tuesday, November 22, 2016

Cerebral Palsy and the "Economy of Health"

The intrinsic (and extrinsic) complexities of Cerebral Palsy (CP) are numerous...to say the least.  Although this statement is generally quite intuitive, this reality sometimes / oftentimes gets lost when the actual business of strategic rehabilitative planning comes into play.  In other words, looking at all of these diverse complexities (whether biomechanical or systemic) as a group / sum of separate individual challenges will result in a large part of the "big picture" being missed.  To put it plainly, complex problems require complex solutions.

This isn't to say that things are TOO complex...nor do I suggest that there is a dark cloud hanging over us all the time.  However, coming to grips with the understanding that (from a fundamental perspective) CP is a multi-layered complexity, will ultimately bridge the gap to another fundamental understanding...which is, to my belief, the most important:

"The human organism is perhaps the most elegant manifestation of organic connectivity known to science."

Going through the actual true physiological meaning of that statement is far too involved for the relatively limited resources of a blog...but being a HUGE fan of analogies, I will simply import the one that I find to resonate the easiest and (more importantly) tends to "stick" in a more internal way.

The Economy of Health

Indeed, there is a big difference between the economy (as we understand it) and a biological system...however the actual interaction, irritability, volatility, inter/intra-dependence, and connectivity are surprisingly comparable.  Further, almost everyone intrinsically understands the general premise of "deficit and surplus"...or "asset and liability"...and most certainly "TAXATION".

Let us first refer to a healthy organism (thus, healthy economy) as our essential reference point.  A healthy organism boasts a critical amount of "natural resources" from which the to draw from.  For example, we have a certain amount of energy stored, and (from a neurological standpoint) our brains operate at a high level of efficiency and are able to effectively manage the autonomic requirements as well as serve as the central "hub" for everything we do voluntarily.  Further, our biomechanical "infrastructure" is set up so that they adequately meet the demands and rigours of our external environment.

In CP, the overall "health economy" tends to slip and slide, rise and fall...all depending on the specific underlying robustness of the entire organism.  To put it more plainly:

1.  "Natural Resources" are low.  Respiration is altered and therefore oxygen / oxygenation is functioning at levels that do not support a growing organism

2. Systemic and biomechanical "deficits" begin to impinge on the overall amount of health "assets" one is able to contribute to the system.  This, in turn, results in a reduction in organic resources available for self-healing and self-regulation.

3. Irritability (ability to interpret problems and respond to stresses) becomes delayed.  Similar to housing crashes and stock market plunges, the body's ability to recognize, diagnose, and adapt to stimulus is critical...and when overall "economic health assets" are low, this becomes more and more difficult.

4. For every systemic and/or biomechanical process (whether voluntary or involuntary), there is a heavy systemic and biomechanical "TAX" that is added on to that said process.  For example, normal levels of activity that would intuitively be acceptable for healthy individuals is ultimately outside of the range of manageability for someone with CP.  Although physical activity IS necessary for development and progress, it has to be mitigated by the imposed "systemic / biomechanical tax" that must be paid.  More importantly, it needs to be determined (individually) whether the payment of that tax is acceptable...or, and acceptable risk.  As an example, weight bearing activities are key to the development of balance and proprioception, but is the joint itself developmentally able (architecturally) to support and sustain full or partial body weight?  Therefore, the calculus becomes "how much of a biomechanical tax are we willing to pay by working on balance and proprioception?"  The reverse calculus can also be part of the larger equation..."how much proprioception and balance work will be loosing if we focus on architectural integrity?"  Although different practical questions, they are both considerations with a larger, complex, and interconnected system.

In summary, I do not claim that a simple analogy will make the actual job of strategic planning less difficult...however, the understanding of the basic concept of how thriving economies work...from the more global "macro" economics down to the "micro" economics of our own household management, we get a different (but already instantly relatable) perspective on how the bigger picture is laid out...and how it is more than a simple "sum of parts".

There is an interdependence and connectivity that cannot be dissected...and although the objective of progress and improvement sometimes seems daunting, economies (whether financial or biological) CAN indeed turn around.  It is most certainly a process of deceleration, control, and gradual "U-turn"...but it can be done.

Last take-away:

"Save all of your 'systemic and biomechanical pennies'...guard them and deposit them. Every cent counts.  It isn't simply a case of reducing your deficits...but a focused effort on growing your assets as well."


Thursday, May 26, 2016

Navigating Hip Pain in Cerebral Palsy

In a continuing series on hip pain in Cerebral Palsy (CP), I wanted to share an interesting (an actually quite common) occurence when addressing the issue of hip pain in children with CP and other neurodevelomental disorders.  As most parents know, ANY sign or indications of pain / discomfort that comes from the hip immediately generate a swell of stress, anxiety, and worry about hip subluxation, hip dysplasia, and other common dysfunction of the hips.  All of these are common and generally manifest at some point along the line...but it is important to take the time to carefully address / assess the SOURCE of the pain so that it can be resolved as quickly as possible as well as provide better insight on how to proceed in the most efficient manner.

Most cases of hip dysfunction / pathology are diagnosed / confirmed with an x-ray, but it is important to (first and foremost) understand the role and limitations of an x-ray.  In a previous post on hip subluxation, I explore in detail the specific nuances of understanding the pediatric hip x-ray...which I recommend you read / re-read either before or after this post.  In that particular post, I outline a set of practical questions that should be asked in conjunction with the information acquired via the x-ray that will help in providing some clarityand ultimately help navigate what is generally a worrisome period of time.

The standard procedure when hip pain is suspected is to take an immediate x-ray.  While this is intuitive and indeed necessary, the subsequent analysis oftentimes gets limited to ONLY the hip joint itself...meaning that once the images are taken, almost all of the focus and magnified and intensified in one specific area.  The reality (in any healthy or pathological condition) is that pain can be manifest in a wide number of areas...and for a wide number of reasons.

Neutral (without internal rotation)

Internal Rotation


The above images are a few quick "grabs" of some x-rays I reviewed a few weeks ago of a young girl who had recently begun experiencing pain in the hip area...manifesting during transfers and changes in position.  NB:  Not high quality images, but satisfactory for "pictures of pictures".  As "standard operating procedure", the x-rays were taken to examine the condition of the hip joint...and ultimately "confirm or discard" any specific issues with subluxation, dysplasia, or other common challenges.

Although my strategy going into any and all x-ray assessment is to look at the area in question, it is also (without question and without fail) to carefully examine and explore all of the articulations and bone mass captured in the image.  That is to say, not focusing on the hip joint itself and (whenever possible) look at the adjacent segment(s) above and below...all the way until you are "off the page".

Before reading on, have a look at all of the images and take mental note of (if anything) strikes you or "jumps out" at you.

When I first saw these, there was a very immediate and explicit observation that literally leaped off the images...but, as a matter of practice, I followed through with a careful exploration of the bony information on the hip provided by these particular x-rays.  Without going into a lengthy and detailed assessment of these images, I will identify two main observations:

1.  The overall status of the hip / hip joint (as captured in these x-rays) looks relatively stable and, within the context of her particular pathology, look very good.  The variation between neutral, internal rotation, and Lowenstein is very small and negligible (perhaps even non-existent)...which generally suggests (with a certain level of confidence) that the joint and joint capsule are generally stable.

2.  There are some obvious asymmetries in the pelvis.

Asymmetric Pelvic Foramen

Healthy Pelvis

The pelvic foramen is essentially the "hole" that is formed by the joining of halves of the pelvis (which are connected at the front by the symphysis pubis and connect with the sacrum at the back).  A healthy pelvis will manifest a more symmetrical hole.  As demonstrated in the image below, the formal "shape" of the foramen is much more "circular or cylindrical".

 This was the first explicit indication of the potential genesis of pain...but the exploration continued.

Obturator Foramena

Note the shape and size of both Obturator Foramena (red arrows)

Obturator Foramena (with abduction)

Of particular note and importance, when the legs are abducted, the overall shape (and therefore, position) of the obturator foramena (as well as the pelvic foramen, by the way) change considerably.  In other words, there is considerable disruption in structural integrity.  This visual information was then integrated into the previous set of symptoms and information gathered earlier.  To summarize:
a) Significant pain that seems to come from the left hip (the "D" indicates the Right side).
b) Pain is manifest almost exclusively during movement and transfers.  More specifically with hip flexion.
c) Favored position (pain-free position) is neutral with no flexion or extension of the hip.
d) Underlying condition of high muscular tone (globally manifested).

Items C and D are of particular relevance when we consider the plethora of muscles and muscular attachments that enter / exit the hip...especially at the deepest levels.

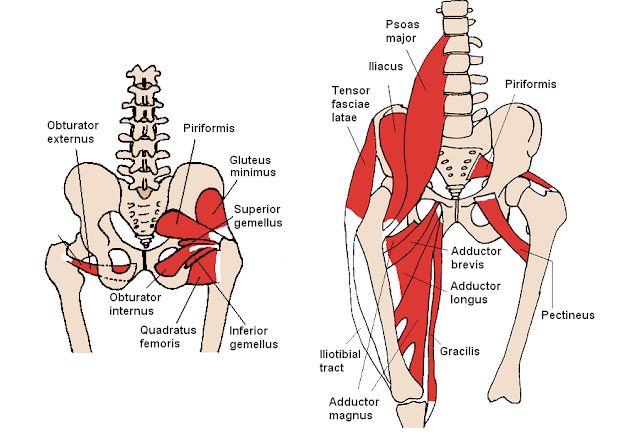

Deep Muscles of the Hip and Pelvis

The above illustration is an example some of the deep and intermediate muscles of the hip (left image is posterior, right image is anterior).  When we import the specific findings in the x-ray, the obvious conclusion is that the pelvis itself is manifesting a posterior tilt of the left side.  Although there are many potential "reasons" for this, the fundamental realities of CP are always at the nucleus:

1.  ALL joints / articulations within the context of CP are weak...and therefore subject to excessive movement and displacement

2.  There is ALWAYS a certain level of muscular imbalance and disproportional levels of tension and weakness.
RESULT:  Proportionally high levels of muscular tension and imbalance stress the various articulations and can potentially generate acute or chronic pain / dysfunction.

In this particular case, it was concluded that the most likely genesis of the pain was this posterior tilt.  In essence, the acute bouts of pain during transfers and movement can be attributed to reflexatory muscular spasms of the deep hip / pelvic muscles.  If we refer back to the illustration above and simply abserve the number of muscles that originate or attach onto and around the pelvis (obturator foramen, symphysis pubis, etc..) it is not difficult to extrapolate the potential chance(s) for irregular stress and strain on the whole muscular system.

With respect to the more practical "navigation" and management of pain, the specific objective becomes a tactical one:

a) Manage levels of pain
b) Address the status and state of the muscles involved (those that play an immediate role in either reducing the amount of pelvic tilt and those that come under immediate threat of spasm).
c) Implement a strategic mid-to-longterm plan to address the strength and integrity of the pelivs and pelvic joints (reduce the likelyhood of re-occurence and/or reduce the intensity/frequency/duration of pain).

In summary, the main message is to (as best possible) engage in habits that encourage and facilitate a broad analysis of not only the area in question but the entire system.  In many cases, the formal "outlet" of pain (where it is felt) can have immediate and direct links but also indirect links to adjacent structures and architecture.

Thursday, February 25, 2016

The Importance of Recovery in Cerebral Palsy

In the race to achieve developmental milestones, promote dynamic movement, and improve overall function, I have found that the "larger picture" is sometimes clouded if not lost completely.  By this I mean that the human organism operates (oscillates) within what I like to call a specific Biophysical Continuum.  In other words, we are not simply "ON" all the time...in fact, we exist within specific "states" of activation.  By activation, I refer to what is the predominant systemic / biomechanical system operating at any given time.

This perspective is an attempt to provide some clarity on the human organism (person) as a whole...or as a "Supersystem" that is something more than just the sum of separate individual systems.  Rather, it is an exponentially complex and inter/intradependent piece of evolution and engineering.  In effect, it is likely beyond our current capabilities to truly comprehend...which is why the Biophysical Continuum is a valuable tool in navigating the journey through neurodevelopmental challenges.

Biophysical Continuum

 As shown in the graphic above, we can effectively separate a full day into 3 formal "states":

1. Activation
2. Relaxation
3. Recovery

Being a continuum, there is no explicit "point" at which one state becomes another...rather that we "slide" seamlessly from one state to another, and at many times during the day, we exists in a state that can be a hybrid "blend" of either activation / relaxation and relaxation / recovery.

Activation can be formally identified as "exercise and movement".  To be precise, it is manifest by HIGH levels of muscular, neurological, and mental resources.  There is a higher rate of catabolic activity which contributes to increased levels of metabolic build-up (lactic acid, etc...) which is toxic to the body and needs to be flushed, and there is a greater stress on biomechanical architecture and neurological resources (concentration).  Relaxation can be misleading, however within the context of this post, I refer to it as those mental and physical activities that take place during the course of the day.  In other words, the "routine" that takes place when we are not either sleeping or exercising.  In this phase, the mental / neurological / physical requirements are well within tolerable limits...mainly because they are likely to be habits that have become somewhat "automatic" and are essentially done within any real conscious effort or concern.  More importantly, systemic function is essentially at a "net zero" level...meaning that there is a sufficient amount of "input" to satisfy the required "output".  Recovery is most accurately defined as "sleep" (and in many cases, meditation as well).  It is during this phase that our systemic "oscillation" (respiration, digestion, lymphatic system, microcirculation) plays a primary role while the neuromuscular "engine" reverts to a primitive and formal "off" state.  This is THE state at which our evolutionary development and "operation" are hard at work.  We slip from any voluntary / conscious influence and are essentially operating on the autonomic / involuntary / primitive level.

This is where we formally enter into our most valuable self-healing, self-regulating, and recovery phase.

If we assign a generic amount of time during a 24-hour day, we are presented with a breakdown that approaches something like the graphic above.  If we assume an average amount of sleep that centers around 8 hours (a lot for some and too little for others, but you get my meaning), an average of 30-60 minutes of what could be considered as "exercise / movement" based activity, and the remaining 15 hours manifested as "daily activity"...we are left with a "colour-code" that looks like that.  In essence, this is an example of an environment that is sustainable.

If we consider the realities in CP (and all neurodevelopmental disorders, in fact) we get a vastly different picture.  Disorders of movement and posture require extremely high levels of muscular activation (even to accomplish those tasks that we generally consider "easy") as well as high levels or mental resources.  To be precise, many if not most of what we normally classify within the context of "daily activity", falls into the category of "athletic exercise" in the individual with CP.

The ultimate outcome is an environment that stresses ALL systemic and biomechanical resources...the result of which are those common challenges we see with alarming and consistent regularity:

-low bone density
-digestive distress
-muscle wasting
-immune system dysfunction
-altered respiratory mechanics
-low circulating oxygen
-hormonal imbalances
-etc, etc...

All of this taking place under the influence of (in most cases) irregular and/or insufficient sleep patterns.

The "bottom line" is that the mechanical and systemic equivalent in a healthy individual is something akin to exercising 14 hours a day, sleeping about 4 hours a night, and leaving approximately 6 hours to accomplish everything else we would attribute to daily function (eat, shower, leisure, study, work).  When placed within THIS context, the stress on the CP body becomes more clear...it is an enormous challenge to a growing organism

The body does not have adequate time to engage in the process of self-healing and self-regulation...meaning that recovery is insufficient and incomplete.

In summary, my primary message is intended to reflect the following:

ANY strategy that contributes to relaxation and enhanced sleep potential is a valuable and VITAL component to all rehabilitation plans.  Although all of the efforts to improve movement, balance, coordination, fine motor skill, etc...are critically important, they also ADD to the biomechanical, systemic, and neurological daily requirement.  Therefore, a careful and focused effort to potentiate the "rest and recovery" of an individual with CP will result in a Biophysical Continuum that is more harmonious and consistent with a sustainable supersystem.

In essence, the "investment into recovery" pays HUGE dividends within the realm of movement and dynamic function.  A system that is rested, fresh, and fluid will perform significantly better...which ultimately results in a better rate of progress.  More importantly, it "raises the ceiling" of potential and greatly enhances the prognosis and opportunity for a best-case scenario.


Friday, February 12, 2016

Early Detection and Intervention: Strategies for Immediate Action

One of the most frustrating realities within the context of Cerebral Palsy (CP) is that "diagnosis", as such, is generally made around the age of 2 years old.  In other words, although it may be known that there is SOME level of neurological damage (or at the very least the POSSIBILITY of neurological damage), the "call to action" with respect to a definitive rehabilitation plan is generally deferred until after an official diagnosis is confirmed.  To be clear, this is not to say that nothing is being done nor does it mean that best interests are not taken into account...what it does mean, however, is that specific strategies and action plans become significantly more defined and clear once the diagnosis has been made.  The logical question people are likely to have after reading that last statement is:    what's so strange about that?  The answer comes back in the form of another practical question:

Why must we wait until things are so "black" before we act?

In other words, there are many things that can be done within the "grey areas" that do not necessarily require a "diagnosis" in order to confirm viability.  Further, the first 12-24 months of life present enormous opportunities to implement profound change due to the high level of neuroplasticity and biomechanical compliance.  The need for a diagnosis goes well beyond the practical debate and extends into issues of liability and systemic function of the medical system...to be precise, almost the entire rehabilitation plan is pre-set  based on the diagnosis.  Although I agree with the necessity for standardization over customization (especially when we are speaking about providing a service to a larger mass of people), it does not mean that there is no room for individual strategies to be formulated that will result in a plethora of tangible (and intangible) positive outcomes.

The next level of questioning is likely to be quite intuitive:

If we don't have a diagnosis, how will we know where to start?

From a broader and more global perspective, we simply need to understand the fundamental reality that, regardless of whether there is a specific pathology involved or not, every human being requires healthy and robust systemic function (vital functions) in order to sustain life.  More specifically:

-Respiratory Mechanics
-Lymphatic Function
-Microcirculation (blood and interstitial / intercellular fluid)

Regardless of the diagnosis (or even the presence of a pathology), these are considerations that can be addresses and potentiated in a more immediate fashion.  This lends to the "organic" perspective as a precursor to the "mechanistic" perspective.  In other words:

The diagnosis establishes the mechanistic strategy ("what is not working and how do we fix it") while early intervention establishes the organic strategy ("what is working and how can it work better").

It should be said that both of these perspective play a role in an effective and efficient rehabilitation strategy...however, the insertion of an organic perspective is what (in my opinion) is generally lacking and even overlooked completely.

Early Detection:

One of my most proud accomplishments with respect to Fascia Therapy is the fact that it addresses these specific "voids" within the strategic options that parents / families / care-givers have.  Beyond being a viable "standalone" platform, adjunct / complement, and tactical management strategy, it has a well defined protocol for early detection and intervention.

Over the last 3 years, I have been fortunate enough to work with Dr. Veronica Delgado who is a well known physiatrist and doctor in Chile.  She has essentially formulated an "Early Detection Protocol" that uses a simple scoring system to identify potential markers for neurological impairment.  In addition (and in conjunction with), I have formulated a specific evaluation protocol that identifies postural and structural markers as well.


Using both the neurological and structural metrics, we are better able to identify levels risk and therefore set a proper early intervention strategy.

Early Intervention:

As stated earlier, as well in a few of my earlier posts on the importance of respiratory mechanics in neurodevelopmental disorders Part 1 and Part 2 , addressing and potentiating improved respiratory function extends not only into the systemic understanding, but has PROFOUND implications on the development of the pelvis and shoulder girdle...thereby having direct influence on health and function of the hips, legs, and arms.  This perspective is something that is worth a read / re-read.

The Fascia Therapy concept addresses this consideration with what is called the Respiratory Protocol which has proven to be a valuable complement to early intervention strategies as well as part of a larger management strategy for all ages with neurological challenges.

Along with the respiratory protocol, there are a group of specialized techniques that potentiate and enhance microcirculation, more specifically interstitial fluid.  To put it briefly, interstitial fluid is essentially the medium by which waste product is transported from the bloodstream to the lymphatic system...therefore having a profound impact on systemic health and homeostasis.  On addition, immune system function depends greatly on robust interstitial fluid flow.  In CP, microcirculation is greatly diminished and effectively manifests in poor tissue quality (colour, texture) as well as overall systemic deficits (chronic illness, stiffness, injury).  Being able to properly identify priority "targets" using these techniques greatly enhances systemic homeostasis and ultimately produces a stronger and more resistant organism.

In summary, this post is intended to underscore the reality that, although "black and white" situations do indeed exist, the "grey areas" are exponentially larger...and they should be looked at as opportunities to implement profound, permanent, and lasting improvement.



Saturday, January 9, 2016

Functional Range Conditioning for Cerebral Palsy: Introduction


This post has taken quite awhile to "come to print"...for no other reason other than it is the result of many rounds of formulation / implementation / re-formulation.  In essence, it is meant to be an evolution to the more common question raised both here in this blog and within the Cerebral Palsy (CP) landscape in general: Is stretching good or bad?   This is a question that I broach in an earlier post from 2012 called Stretching and Cerebral Palsy: What you should know.  If you have not read that entry yet, it goes into the specific challenges of stretching strategies in CP...but more importantly, it sheds some light on the actual biomechanical realities of this intervention.  As you will read (or may have already read) in that post, I don't identify a "clear winner" as to whether stretching is good or bad (or whether people should or shouldn't)...rather that it is something that requires some significant thought and formulation.  Additionally, we should be very careful when we attempt to "import" rehabilitation strategies we use in the healthy population to the world of CP.  The biomechanical and architectural realities are so different that we need to approach mechanical issues with significantly more care, analysis, and formulation.

Taking all of this into account, I will begin the process of sharing a strategy I have called Functional Range Conditioning for CP.  It is a relatively comprehensive set of skills from the objective observers perspective that is based in an equally "heavy" physiological foundation...but at the same time, it is something that lends well to the "end-user".  This means that it has been specifically formulated to resonate well with any parent / care-giver and therefore serve as a valuable tool that can be used directly in the home.

The term "Functional Range Conditioning" is something I have essentially borrowed from an already established methodology used in athletes that efficiently and effectively frames an essential (and fundamental) reality:

In order for functional performance to improve (and thus reach maximum potential), we must first ensure that joints actually behave as joints.  If the singular articulations are dysfunctional, then the movement potential of the entire body is limited.

Therefore, the strategy --- when addressing the issue of restricted / reduced ranges of motion --- is to first identify the dynamic behaviour of the joints before engaging in any active (or aggressive) stretching protocols.

Mitigating the challenges and risks of stretching

Challenges and risks??!  These specific things are identified in detail in the earlier stretching post, but once you have absorbed these risks and challenges, the next practical question becomes:

"How do I (we) navigate and reduce them?

One of the MANY architectural challenges in CP is the inherent "mismatch" between the excessive strength (tightness) of the muscle fiber and the relative weakness of the connective tissue "anchors" (tendon, tendon attachment to the bone).  In other words, when we import a standard stretching protocol to CP, it is impossible to confidently be sure that the stretch itself is actually stretching muscle or in fact stressing / straining the tendon and/or the attachments to the bone.

Therefore, before any angular (dynamic) movement is done, we should first provide some essential "nutrition" to the joint itself.  This is the first step in Functional Range Conditioning:

1. Joint Health and Nutrition

In order to achieve true productive range of motion, the joints MUST be healthy (or as healthy as possible) and formally behave (perform) as they are designed.  The reality in CP is that the majority of the synovial joints manifest moderate to profound stiffness.  In other words, the joint capsule (the connective tissue that covers the entire joint like a sac) manifests a certain fibrosis.  This means that rather than being a pliable and adjustable membrane, it is tight, fibrous, and relatively unforgiving.

"Sponge Analogy"

I have used the Sponge Analogy on many occasions and I can honestly say that it is one of my most favorite ways of explaining joint behaviour in a way that is almost instantaneously understandable.

Joint require a certain level of fluid...not only within the joint itself, but within the layers of tissue and even down to the cellular level.  This fluid essentially "bathes" the joint...providing not only lubrication and movement freedom, but also NUTRIENTS.  When a joint is fibrotic, it can formally be related to a dry sponge.

The image above essentially demonstrates the 3 states that joints can manifest.  They should not be considered as 3 separate states, however...this should be looked at as a continuum.  Meaning that there is a gradual change in state when we move from one extreme to the other.

Dry Sponge

The dry sponge represents the fibrotic joint.  It is rigid, in some cases distorted, and very much devoid of nutrients.

Moist Sponge

This is meant to represent the "ideal homeostatic state" of a joint.  There is sufficient amounts of interstitial fluid to maintain its integrity as well as provide it with the required amount of nourishment.

Wet Sponge

The wet sponge represents the joint that has experienced some form of trauma...whether it be an acute injury or the result of long-term chronic stress.  Think of this as swelling or edema.

If we consider this analogy, then imposing angular dynamic movement (stretching) around this joint can potentially (if not likely) run the risk of unseen (and potentially de-stabilizing) injury or insult.  As a matter of strategic wisdom, when we are dealing with the challenges of CP and stiff / fibrotic joints...

The first "order of business" is to implement those techniques and interventions that are the most efficient at moving and mobilizing Interstitial Fluid towards the joint itself.

These techniques and interventions are part of the specific skillset and toolset used within the Fascia Therapy framework and are easily delivered during our training sessions.

2. Functional Range Development

This step is implemented after (or in some cases, concurrently) the joint health and integrity step.  This step has 2 fundamental aspects:  a)  use specialized manual techniques to relax stiff and tight muscle...and b) impose progressive multi-joint movement patterns (using varied tools such as pilates balls and stability balls) to engage and activate the entire neuromuscular chain just as it would be engaged and activated in a real-life environment.

These movement patterns are quite varied and are essentially dependant on the individuals intrinsic movement competence and abilities...however, they are implemented based on the process of natural human motor development and formally help to potentiate movement through the developmental process in a more efficient and timely manner.

In summary, this is only an initial overview of the framework of Functional Range Conditioning.  As with any approach, it should not be considered as a magic bullet...nor does it's existence and/or implementation negate or diminish the outcomes of other strategies.  It is meant to serve as a viable and realistic adjunct to all long term rehabilitative strategies...more specifically, a safe and effective way to develop, activate, and nourish better movement coordination and performance.

More to come!


Sunday, November 29, 2015

Rigidity and Spasticity: What's the Difference?

This is a question that, strangely enough, does not get asked very much...at least to me.  The reason I would categorize this fact as "strange" is that, within the context of neurodevelopmental disorders, they manifest quite differently...and with respect to their effect / affect ratios, they both present vastly different challenges.  In my estimation, the reason for this is partially the fault of the general population of medical professionals...an unintentional error, of course.  It speaks to an underlying dysfunction which I have called a "Diagnostic Disability"...which in plain terms means that the medical / health profession at large are not using the same "technical language".  Although the alphabet is the same, words are used within vastly difference contexts and, over time, essentially become merged and "blurred".  The terms "rigidity" and "spasticity" are victims of this phenomenon and therefore have essentially become synonymous with each other.  As part of the process of navigating complex physical / physiological challenges (for both families AND professionals), it is important to (at the very least) take time to provide a well-defined "glossary of terms" so that those you work with have a clear understanding of what is being said.

The medical physiology of rigidity and spasticity are relatively complex and therefore getting into these complexities would not be a productive exercise simply because the objective of this post (and the next post to follow) is to provide a global understanding that is easily integrated and which can be built upon.  As always, information is best absorbed in "digestible" chunks.

Within the realm of Cerebral Palsy (CP) and other disorders of movement and posture, it is important to remember (and understand) that muscular dysfunction cannot be classified into specific and explicit "categories"....that is to say, nothing in the real world is a manifestation of one pure issue.  Everyone is essentially a tangled mix of tension, stiffness, weakness, rigidity, spasticity, etc...even more so, they all overlap with each other in many ways.  To be specific, the observable MANIFESTATIONS of any and all of these issues often appears the same.  With this in mind, the pressing challenge becomes how to identify the most prominent biomechanical muscular limitation ...with the end objective being to efficiently formulate effective treatment goals as well as implement the appropriate management strategy at home (sleeping, resting, feeding, etc...).   Being able to identify is always the first step...once that has been done, the process of "what to do about it" becomes more clear and therefore results in better treatment outcomes.

1. Spasticity is velocity dependant whereas rigidity is not

The response to passive movement is an effective way to identify spasticity versus rigidity. A spastic muscle will generally appear relaxed when at rest, but when moved passively (extended) it will increase in tone and then return to a generally relaxed state when the movement is stopped.  The rigid muscle will express high tone at rest and throughout the entire movement.

2. Spasticity, in general, involves single muscle groups whereas rigidity is global

Although not considered to be a "black and white" reality, spasticity is oftentimes found to be present in the "anti-gravity" muscles such as the hamstrings, hip flexors, biceps, etc...  Rigidity, although can certainly be found in the anit-gravity muscles, is more commonly a global manifestation.

3. From a clinical perspective, long standing spasticity leads to contractures more than long standing rigidity.

This statement is a very generalized clinical statement which simply defines some of the treatment parameters.  Contractures are always an ever-present reality regardless of specific diagnosis or classification, however a long-standing situation of rigidity tends to result in less (or less severe) complications with contractures.

The follow-up to this post will discuss some of the theory and strategies that parents / care-givers can implement immediately.  The issue of rigidity versus spasticity becomes more multi-layered when we realize that both of these (somewhat different and exclusive) manifestations is generally addressed in the same way:  STRETCHING.  I would recommend a read / re-read of my previous post on stretching and CP to absorb / re-absorb the underlying challenges and considerations of implementing stretching protocols.  Stay tuned for the second part of this post:



Sunday, August 16, 2015

AFO's and Cerebral Palsy: Do or Don't?

Although it remains one of the main issues / topics discussed during almost every family meeting or training session, I haven't quite given AFO's (all orthotics in general) the attention it deserves.  The general perception on this issue is, for the most part, driven by untuition.  In other words, the feet are distorted so let's do something to straighten (or fix) them.  Despite this intuition, the same question arises with alarming regularity:

"Should we use them or not?"

I have never been a big fan of blanket responses...meaning that there is very little I can answer with a short "Yes" or "No".  With respect to AFO's, the reality of what you should do will reveal itself once you walk yourself through a series of steps and practical questions.  This is to say that, the question of "should we or shouldn't we" is far to simplistic...this needs to be examined with a more comprehensive process and the "answer" is distinct for every family.

Every family will need to flash this question through their own "prism" and ultimately decide what is best for them and their shared value system...which is why I find it is much more efficient to avoid blanket responses and set a specific framework of understanding and examination so that every family will ultimately arrive at the most productive response.  The first practical question to ask yourself is:

What is (are) your specific intention(s) of using AFO's?

AFO's (and orthotics) have been a rehabilitation option for hundreds of years.  The main difference / evolution has been that the materials used are lighter, customizable, and more efficient to manufacture...however the general mechanical premise is the same.  I mention this for a specific reason:

If the intention / objective of using AFO's is to reverse or "fix" a biomechanical distortion, this would be an over-simplification of a vastly more complex situation.

Meaning that, historically there has been no significant evidence or research that points to the premise that AFO's reverse biomechanical distortion.  We then come to the next level of questioning and formulation:

If they do not reverse or fix anything, what use do they serve?

Again, the issue isn't whether they are good or bad, but how they are used and to what end.  AFO's are excellent adjuncts / complements to larger rehabilitation strategies for children who are either ambulatory or who demonstrate some level of weight-bearing (partial) directly on their feet.  Therefore...

AFO's are extremely valuable when the main objective is additional support and safety within a larger rehabilitation strategy for walking improvement / development.

Foot Orthotic with Knee Orthotic
In other words, they can provide a significant window of opportunity to amplify and/or expediate the development process by imposing a small amount of support to otherwise weak articulations so that the ENTIRE biomechanical organism (the whole body) can engage and interact as a whole...as it is meant to do.

In some cases, this formulation can be overwhelming...and whereas more information is usually helpful, sometimes it can confuse as opposed to clarify.  Therefore, I can break down the process into something that is likely to be more user-friendly and easier to process.

Helpful "Do / Don't" Checklist

1. The use of the AFO associated with pain or discomfort.  DON'T

2. The use of AFO's results in more enagement and interaction with the environment.  DO

3. Is your child relatively functional and have some general weight-bearing ability already in place?
Yes --- DO
No --- DON'T

4. My goal is to reverse deformities in the foot. --- DON'T

5. The use of AFO's are part of a larger strategy. --- DO

In reality, this "checklist" is quite generic...but it serves to amplify the central premise that AFO's are neutral to the question of good or bad...right or wrong.  It is the specific intention that sets the framework for their efficient use.  It is easy to get caught up in the laws of contradiction...which is to say that, if their use is GOOD then their non-use is BAD.  The law of contradiction is a reality that simply states if one thing is 100% good all the time, then the opposite to that action is bad 100% of the time...which is far from the reality.

Again, this formulation is something that MUST be put through each family prism.  Therefore, it is perfectly acceptable that my very perspective is dismissed and discarded...but the issue is not convincing or "conviction" as such, rather to ensure that decisions are made VIA some form of analysis and exploration as opposed to the more simplistic (and perhaps convenient) mechanisms.

Wednesday, August 5, 2015

Activating the hands in Cerebral Palsy

This post is a follow up to the previous post on sensory brain exercises for CP.  Although these sensory exercises are useful, they are somewhat limited when you are presented with a hand that is consistently (and/or rigidly) closed or fisted.  In addition, the closed fist is almost always accompanied and characterized by some distortion and asymmetry...both of which may make simple sensory exercises difficult and frustrating.  With this in mind, I wanted to shed some additional light on the issue of hands and (hopefully) provide some options and avenues for those parents and families that want to actively potentiate some improvement in the hands and, perhaps more importantly, provide some clarity on some realities about the developmental process...which always proves to be helpful and immediately useful.

"Don't put that in your mouth"

Words that every parent has said (or yelled) at one time or another, correct?  Although it is an intuitive understanding that babies / children will put things in their mouth, it is oftentimes difficult for parents (and people in general) to truly understand and formulate the reason why this is done...and universally across the board.  ALL humans do / did this!

 This type of behaviour is simply the manifestation of the natural developmental process of exploration and discovery.  In the first few months, a baby's visual field is still quite immature therefore in order to genuinely get "a sense" of themselves and their surroundings, they need to expose things to those senses that have reached a higher order.  In other words, they formally "feel" things with their mouths.  This includes hands, feet, and pretty much any object that is within reach.

As a natural and healthy part of the developmental process, children will go through this phase during the first few months (and first year) and then when their visual competence and acuity begins to develop more, they will begin to actually grasp and hold things within their field of view.  Although they are still likely to put things into their mouths for "enhanced feedback", they will consistently stare at and track objects that enter their field of view.

Missing Links and Activation in CP

When we put this into the context of CP (and neurodevelopmental disorders), the reality in many cases is that the opportunity to enter this exploration phase of "hands / feet / objects in the mouth" has never been experienced...whether due to direct neurological impairment, significant physical limitations, or both the hands (and even the feet) have never been fundamentally "woken up" or activated.

Point of interest:  A new born baby will consistently manifest a closed fist (with the thumbs outside), but as he/she develops and begins the fundamental process of self-exploration, the hands and fingers are exposed to high levels of sensory input...essentially activating them, while at the same time the brain itself is formally "registering" the hands / feet and creating a working body map of them as well.    In CP, more specifically in those GMFCS Level 4 and 5 classifications, the hands seem to maintain some level of "closure" and (as the hands and fingers get longer and wider) distortion.  This is not to say that distortion and/or asymmetry in the hands is 100% due to this missing phase...however, the fact that fundamental activation VIA these mechanisms was limited or even absent is most certainly a part of the reason...and therefore, by definition, part of the solution.

"Little things...BIG difference"

With respect to tangible and practical "things to do", this would vary greatly on an individual level...however there are certainly some standardized and "generic" ideas that are usually quite helpful and, paradoxically, nothing new.  Alot of what is done within the scope of Occupational Therapy fits quite well within this narrative, however as parents it is always strategically wise to potentiate and activate your own level of understanding, knowledge, and skill...for the simple reason that whatever is done in the home and by YOU is done with the most care, attention, and concentration possible.

It is not likely a realistic idea to attempt to literally put a hand into the mouth, but it is relevant to know and understand that the head and face are areas of high sensory competence...meaning that hands that are passively touching, brushing along, and/or placed onto the head and face (especially near the mouth) generate a very powerful sensory "activation".  Beyond some of the sensory brain exercises mentioned in my earlier post, massaging and rubbing the hands with creams, essential oils (Lavender), or balms will also impose useful and productive stimulus.

If your child has relativilty good visual acuity, you can combine these with some active (relatively unstructured) play with tools / toys of varied textures (feathers, balls, etc...) that can be brought into their field of vision and (with help) encourage interaction.

"Awareness before Activation"

One of the fundamental messages proposed in the previous post is the simple understanding that a "mechano-sensory awareness" must be developed in order for any productive activation can begin.  Extrapolating this idea, FUNCTION (which is the overall objective) is formally the manifestation of organized and coordinated activation...therefore starting at the root and addressing the fundamentals of awareness will provide significant help in achieving that objective.


Monday, July 27, 2015

Brain Exercises for Cerebral Palsy: Sensory Body Mapping

One of the biggest (if not THE biggest) mysteries of mankind if the human brain.  It has been said that we only truly understand about 2% of how the brain works...which begs the question as to what (if anything) can we really do about improving or "re-training" it.  Despite the odds being stacked against us, we certainly have windows of opportunity to confidently work within the parameters of this 2%.

Most of my work within the Fascia Therapy context revolves around the biomechanical and systemic manifestations of injury and / or neurodevelopmental disorder, but this does not imply that there aren't any simple and user-friendly things that can be done to extract the maximum best-case scenario by tapping into a resource that has an infinite amount of influence and potential.

"It's all in your head."

A common expression, however from a formal perspective it is paradoxically quite accurate.  Things such as pain perception have long been studied and identified as something that can actually be controlled via some form of training.  More relevant to the context of this blog, I will use the example of a more familiar phenomenon called Phantom Limb to set the groundwork towards understanding the mechanism of Sensory Body Mapping.

Phantom Limb is a phenomenon characterized by a person with a recently amputated limb continuing to perceive their lost limb as still being attached.  In other words, they still continue to "receive" sensory input to the brain which often times is characterized by severe pain.  There have been many (largely inconclusive) theories on how this happens...but the prevailing opinion is that the severed nerve ending in the stump are irritated and therefore increase afferent (sensory) signals to the brain.  The reason as to "why" it would be interpreted by the brain as an entire limb (which is no longer there) is the real mystery...however, there have been some interesting studies in the last 5-8 years regarding the brains way of "mapping" the body which can be (at the very least) extrapolated into a working theory or model.

The brain essentially keeps and registers a "blueprint" of the entire body so that when any kind of sensory stimulus enters into the system (hot / cold, texture, sound, etc...) the brain can identify where it is coming from or where this stimulus is being applied.  For example, if you place both hands behind your back (so that you don't see them) and touch both index fingers together, your brain will immediately register some pressure being applied to the fingertips.  This is a generic demonstration of afferent (sensory information TOWARDS the brain) pathways being opened and used.  In healthy individuals, the "map" of the body (in this case, map of the entire hand) is well developed...therefore we are able to receive sensory information, process it, and engage in fine motor skills via efferent (motor instructions LEAVING the brain) pathways.  In general, coordinated movement is a formal "loop"...starting with sensory information going to the brain and resulting in programmed movement being generated by motor instructions going to the body.

The "Shrunken" Map

This relates quite heavily to the phenomenon of Phantom Limb...which is essentially a representation of the brain's "body map" remaining in place while the limb is no longer there.  My theory with respect to neurodevelopmental disorders can be considered as the "reverse" situation...a situation whereby the body map was never fully developed due to limited or lack of use.  What does this mean in practical terms?  According to these recents studies, when a limb (hand / foot / etc...) is contracted and goes unused over time, the representation of that particular limb is reduced considerably in the brain.  In other words, a hand that is consistently closed with no use of the fingers will formally be registered in the brain as a "club or stump".  When this "shrunken body map" scenario takes hold, a significant (if not all) amount of motor function will be manifested with the "neurological intent" of using a club...not a hand.  In practical terms, movement will be characterized by more gross motor patterns (swinging, swatting) and very little (if any) fine motor skill.

This is a dilemma for most because the subjective impression is that they either do not know how to use their hands or do not WANT to use their hands...but in alot of cases, it is simply a question of the brain not having a proper body map established.  To compound this scenario, persistent and chronic non-use of the limb results in sensory (afferent) pathways going unopened and unused for years...essentially becoming dormant.  Beyond the progressive deterioration that can be accompanied with growth and development, this reducing sensory challenge only serves to aggravate the situation.

"Re-drawing the map"

Sensory Body Mapping is therefore the formal adjunct "technique" that is designed with the following objectives:

1. Re-awaken dormant sensory (afferent) pathways
2."Re-draw" the body map that was previously reduced or non-existent via sensory pathways
3. Potentiate gradual improvement in motor skill (particularly fine motor skill)
4. Facilitate an environment that potentiates further coordination and function

Simple Steps:

This pattern is generally repeated for a few minutes at a time which can then be followed by some active / unstructured play using toys or various textured objects.  This tpye of activity is more functional and will serve to potentiate the stimulus now travelling through the re-opened sensory pathways.

If the hands are in a closed position, this can also be done on the dorsum (back) of the hand in a similar fashion.  The back of the hand contains less soft tissue, therefore the stokes may be done by using a softer implement such as a small paintbrush.  Additionally, this form of "mappping" can be done in different areas of the body...all of which require a specific framework (or grid).

The strategy is to use this type of mechanism as a complement to the larger rehabilitation plan in an effort to extract the best possible result.  Coordinated and productive movement / function is the net result of a reciprocal relationship between sensory and motor function...therefore potentiating and improving sensory integrity is an essential component to developing (or re-establishing) better motor control and function.

More specifics on how it looks to come on the FT YouTube page.
Try it out!
